Project: Youelline Engineering

RL Engineering manufactured a range of precision aluminium components for Youelline Engineering as part of a bespoke wheel-loading and handling system. The project combined CNC milling and turning across several complex components, with accurate bores, threaded features, internal cavities, contoured surfaces and precision mounting features required for reliable and repeatable assembly.

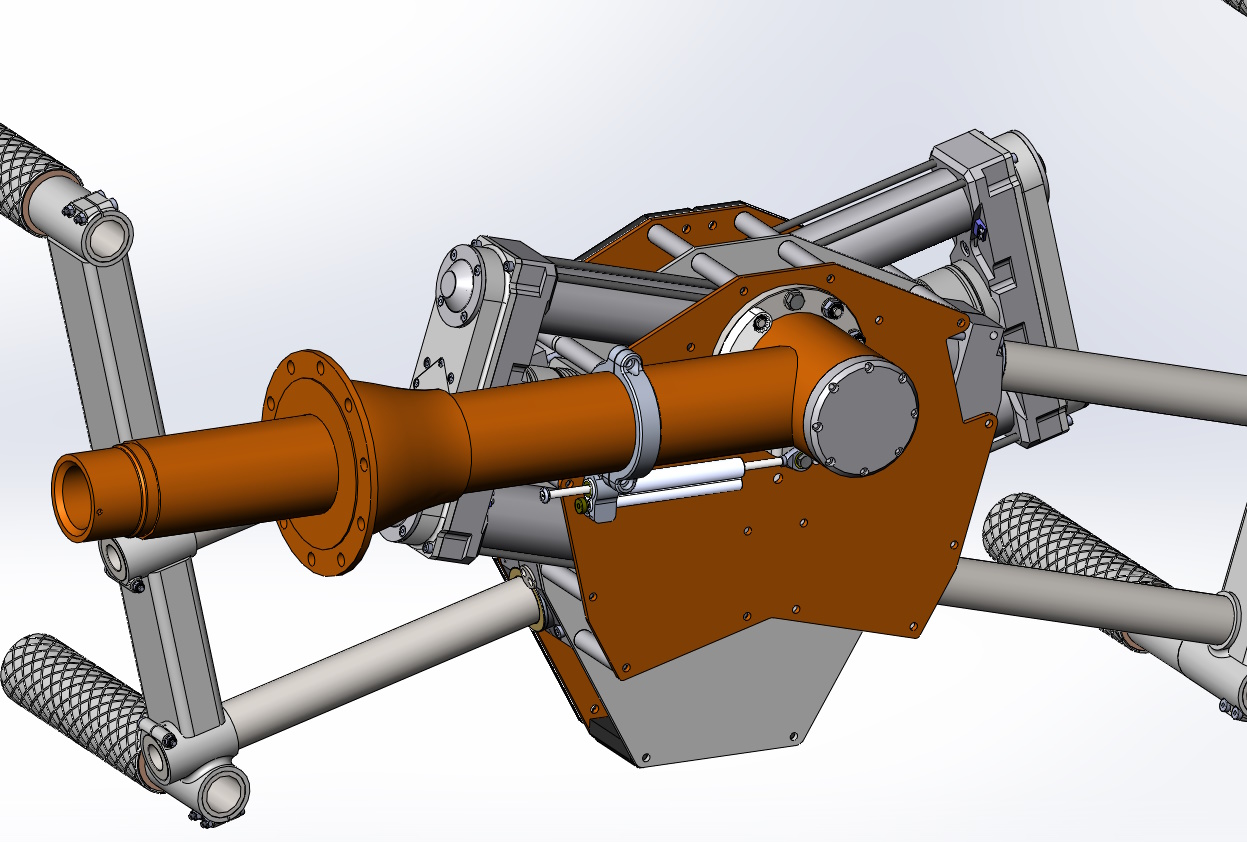

The CAD illustration provides the wider engineering context for the project. RL Engineering manufactured the precision-machined aluminium components shown below; the complete handling system was designed by Youelline Engineering.

Components Manufactured

The project involved several complex aluminium components manufactured to support accurate and repeatable assembly. The work included multi-face machining, internal cavities, precision bores, threaded holes, contoured profiles and mounting features.

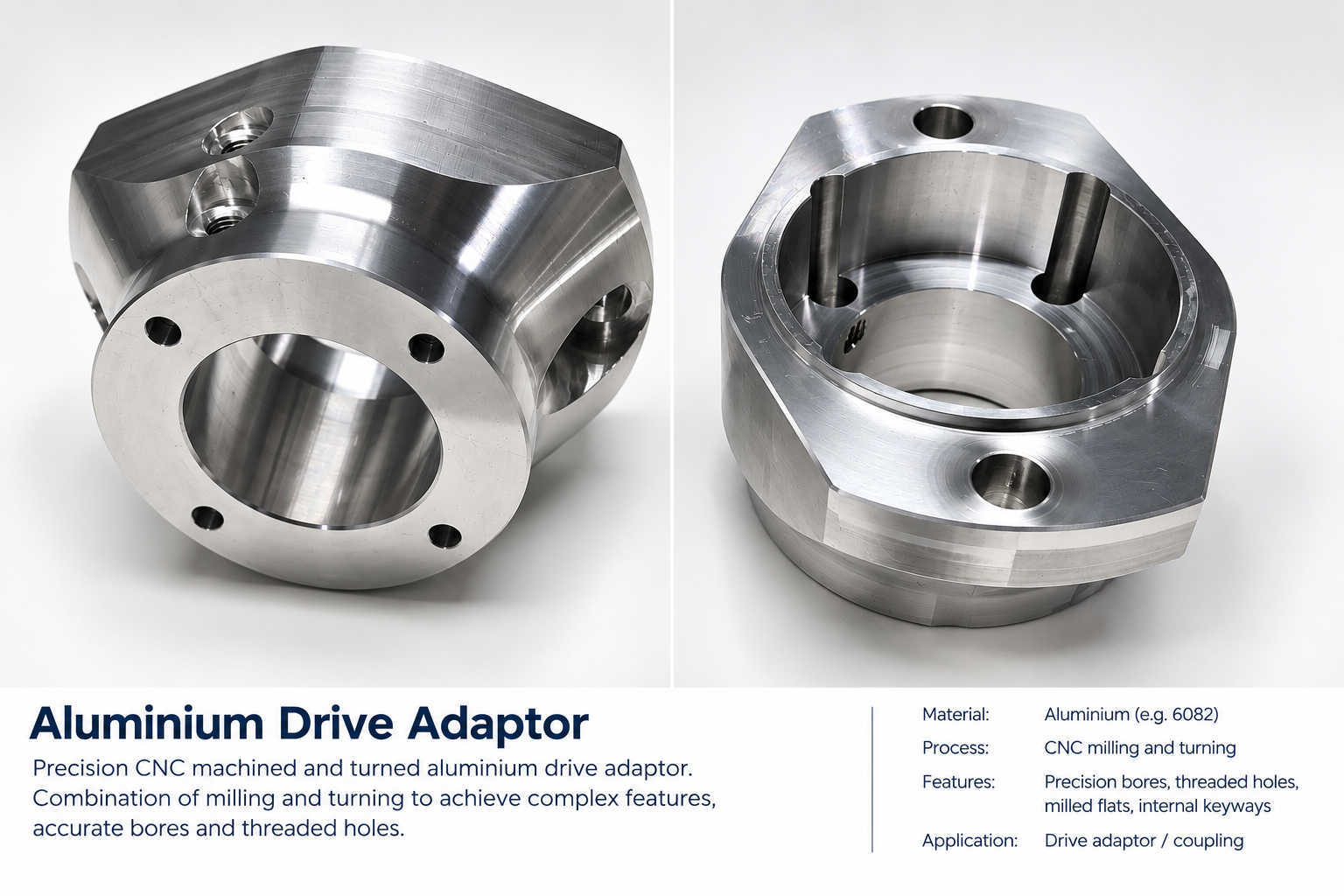

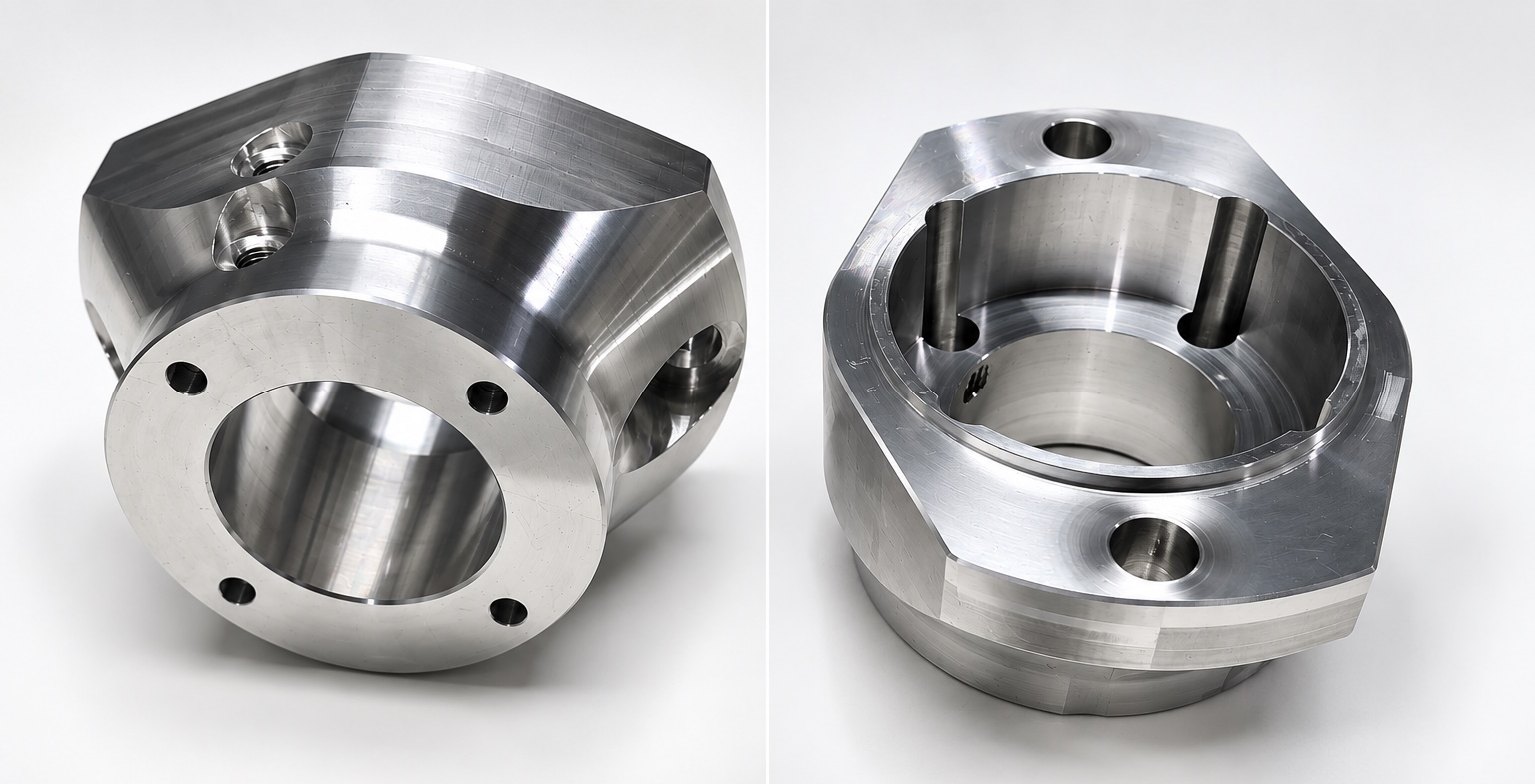

Aluminium Drive Adaptor

Precision CNC machined and turned aluminium drive adaptor. A combination of milling and turning was used to produce complex internal features, accurate bores, threaded holes and milled flats.

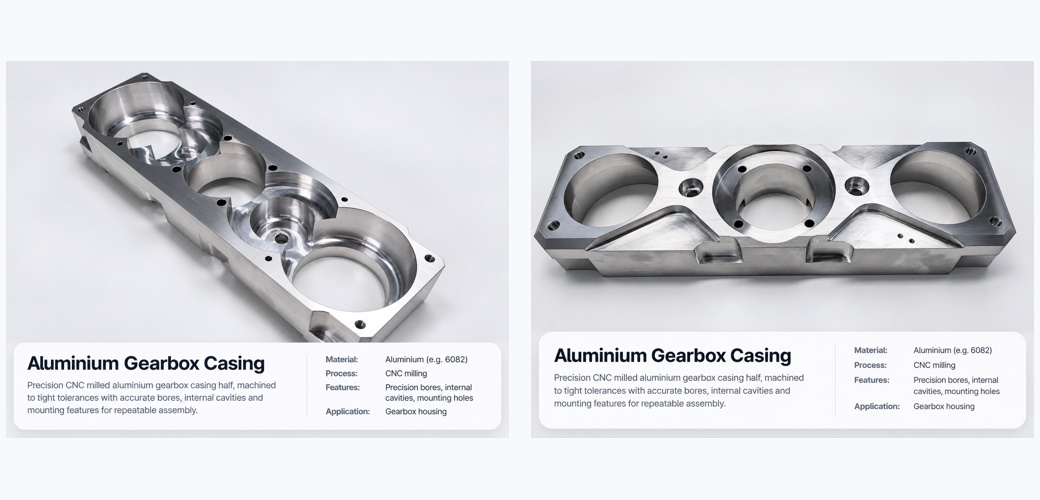

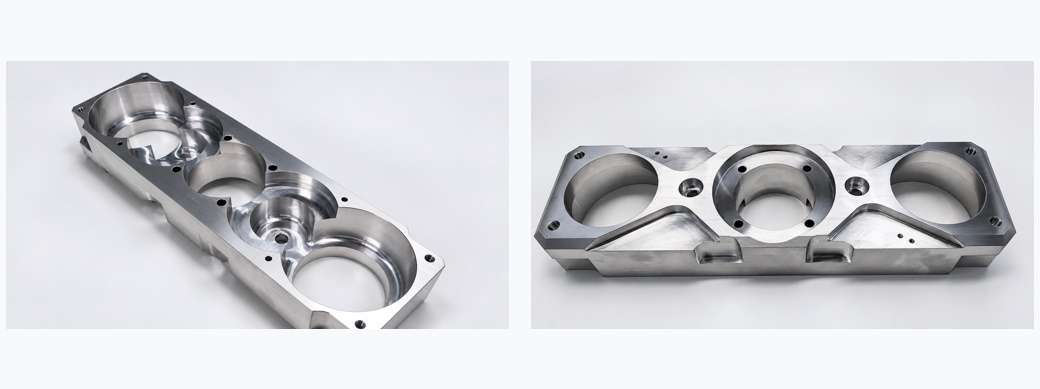

Aluminium Gearbox Casing

Complex CNC milled aluminium gearbox casing manufactured with accurate bores, internal cavities and mounting features for consistent and repeatable assembly.

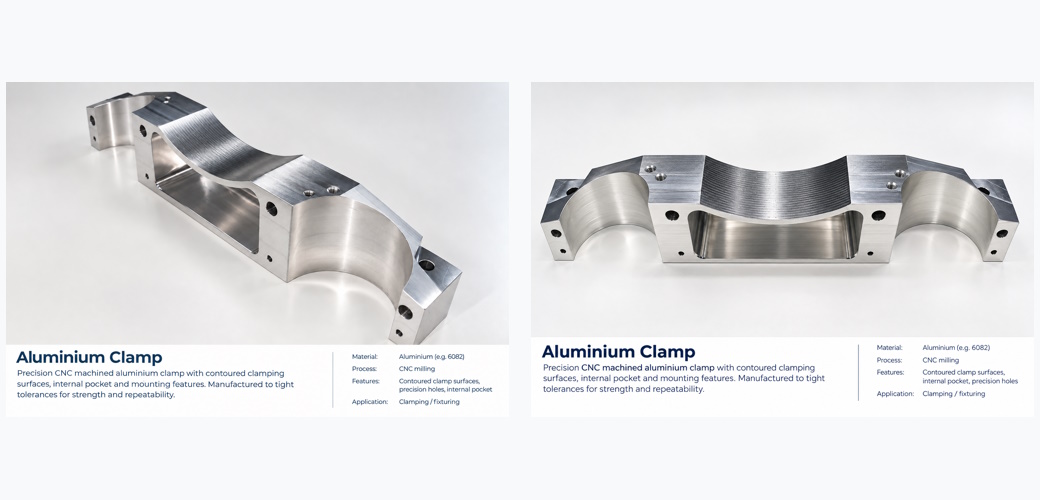

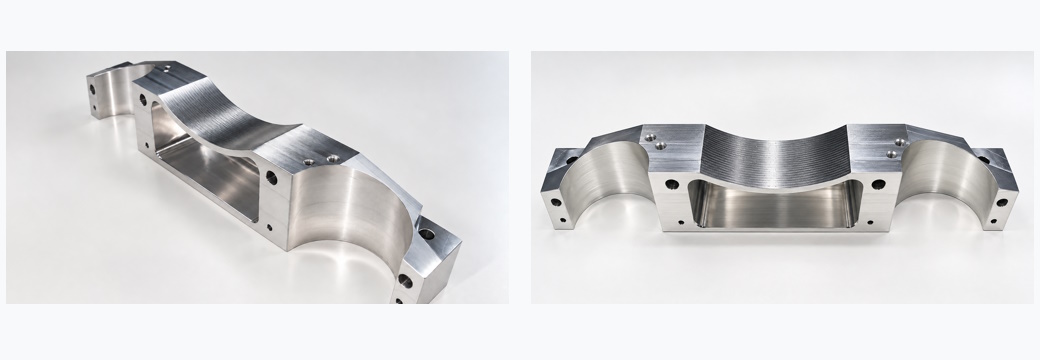

Aluminium Clamp

Precision CNC milled aluminium clamp with contoured clamping surfaces, internal pocketing and multiple mounting and threaded features. Manufactured to tight tolerances for strength and repeatability.

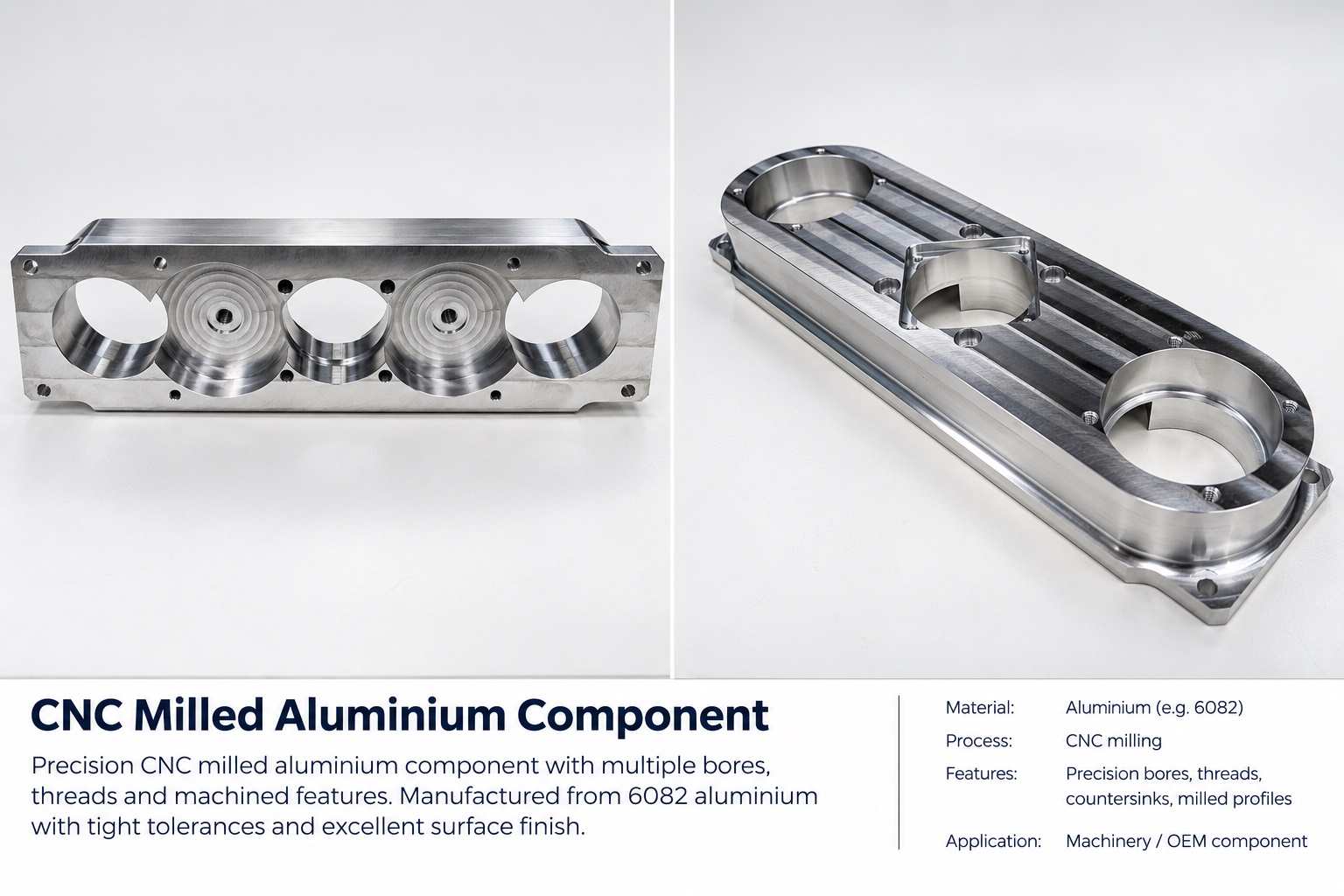

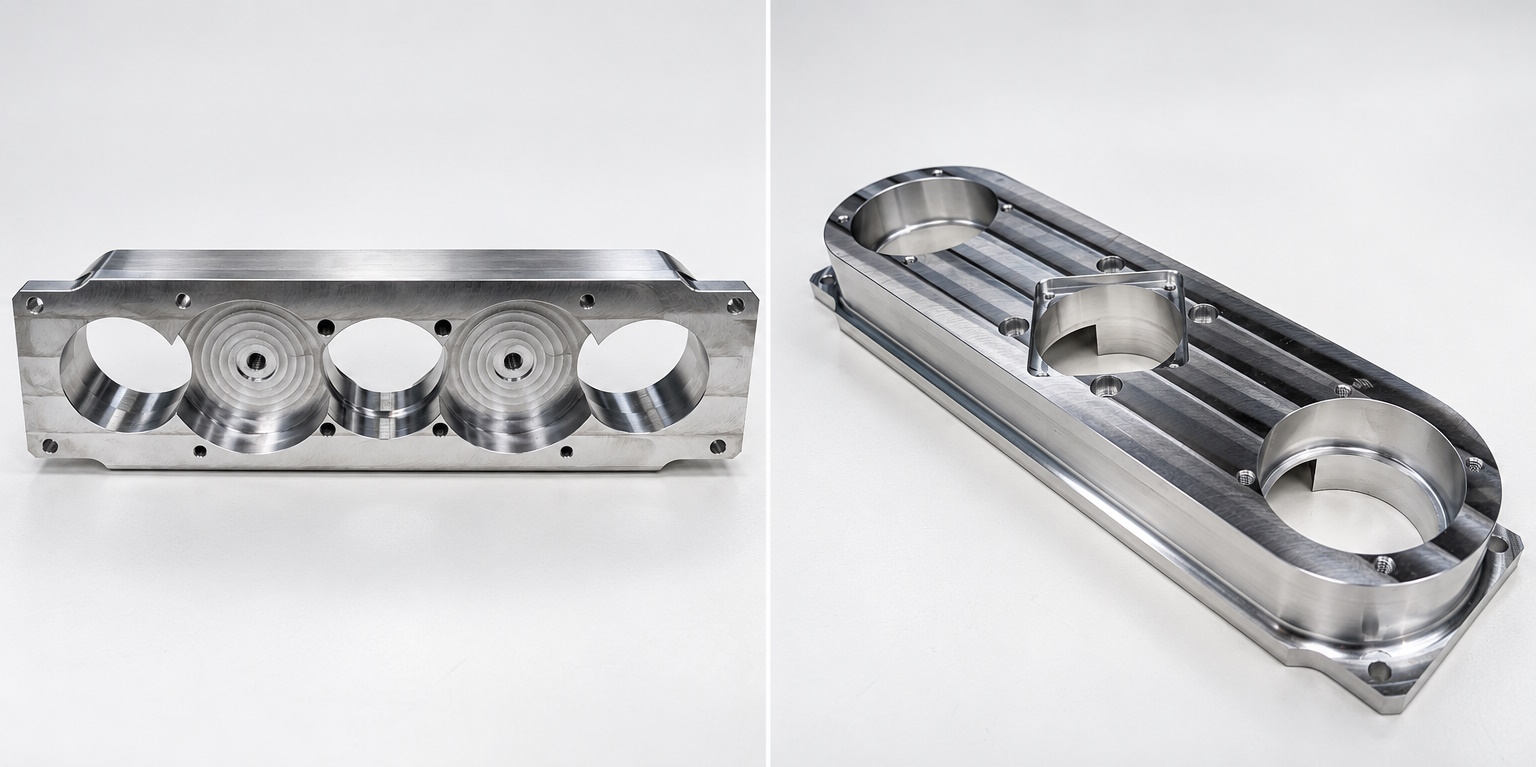

CNC Milled Aluminium Component

Large multi-feature aluminium component requiring accurate bores, threaded details, machined profiles and consistent positional accuracy.

From Component to Assembly

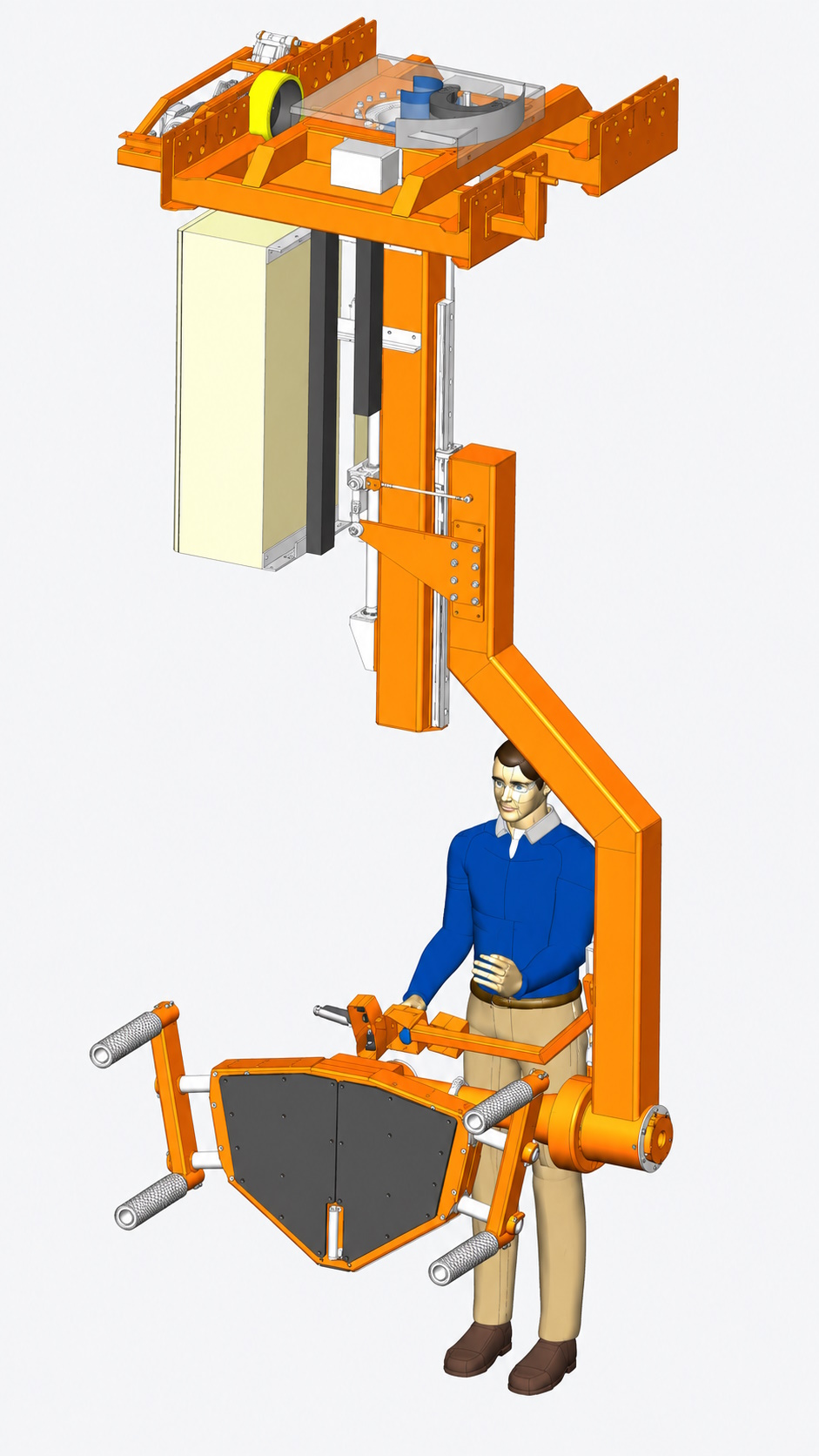

The individual component images show the parts prior to final assembly. The system illustration provides the wider engineering context and shows how the precision-machined components contribute to the complete bespoke handling solution.
